Cluster Components

After you have successfully created a Kubernetes cluster in Vietnix Cloud, you can view detailed information about its nodes and the infrastructure resources automatically provisioned.

View Cluster Information​

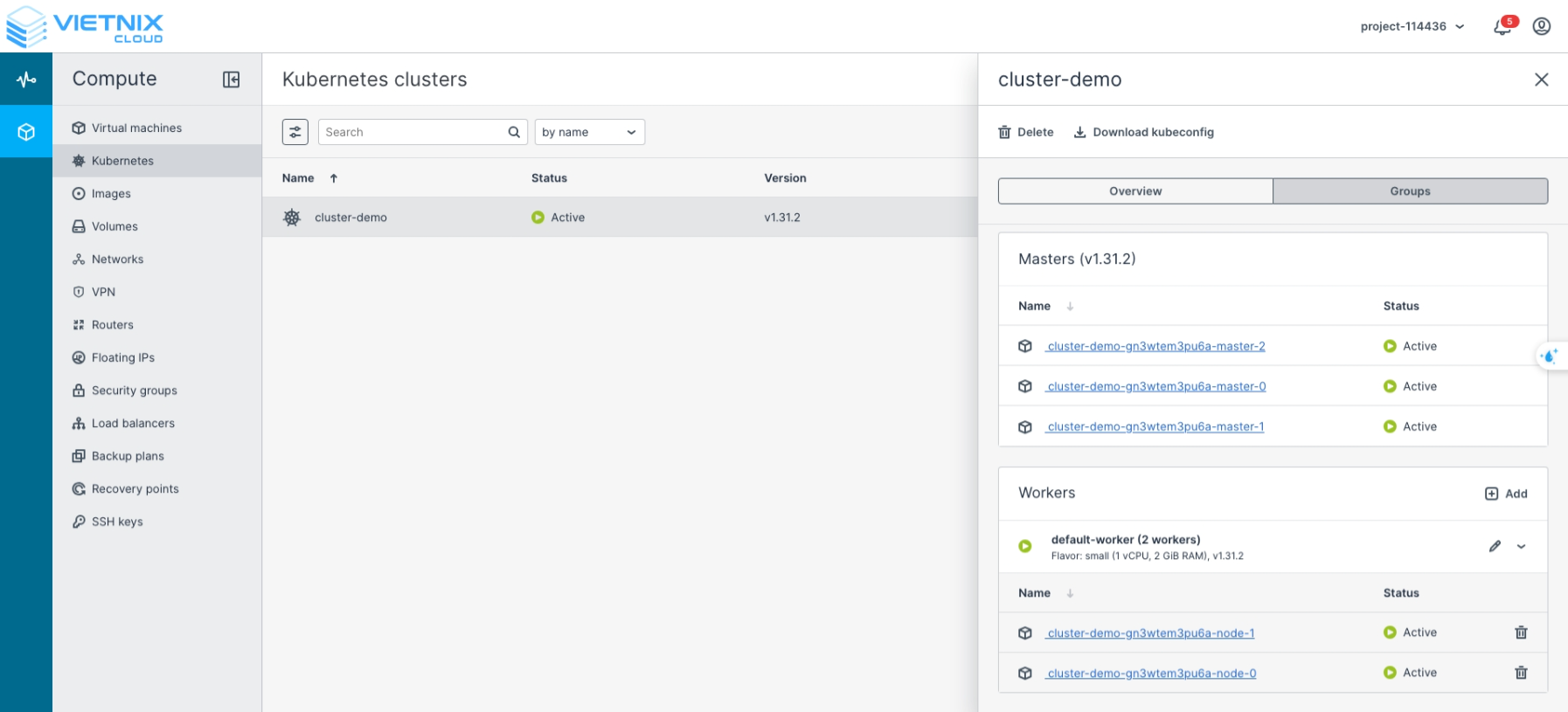

  1. Select the newly created cluster to view detailed information about its nodes.

    Cluster Information

Explanation of Cluster Components​

When a Kubernetes cluster is deployed, the following components are created:

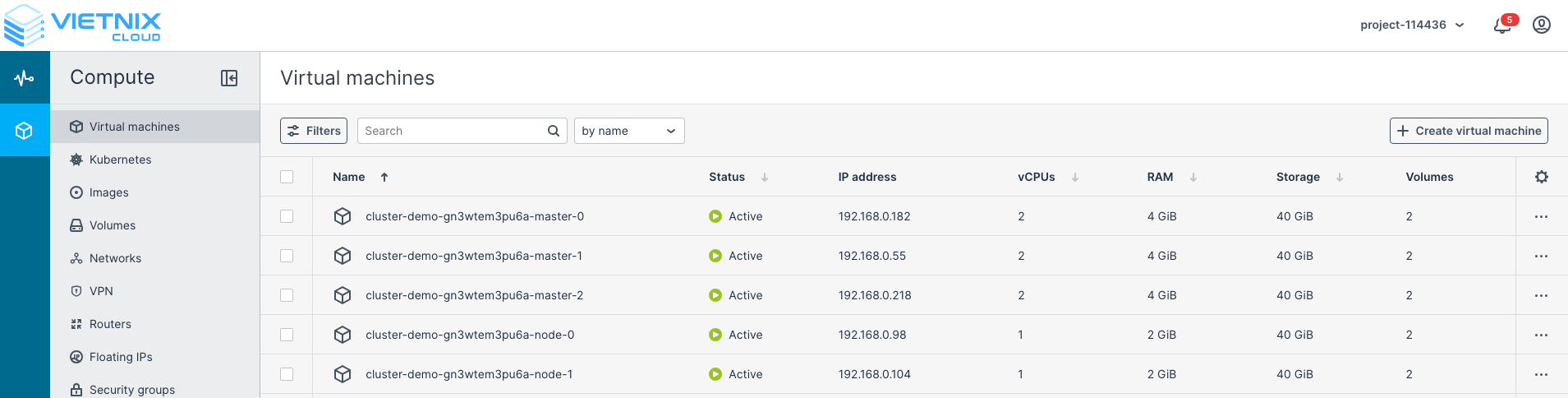

1. Virtual Machines​

  • A number of VMs equal to the master and worker nodes configured will be provisioned.

  • Each VM includes two volumes:

    • System volume: 20 GB (default for each Kubernetes node).
    • Container volume: the size you defined during cluster creation.

  • Example: if you created 3 masters and 2 workers, you will have 5 VMs in total.

    Virtual Machines

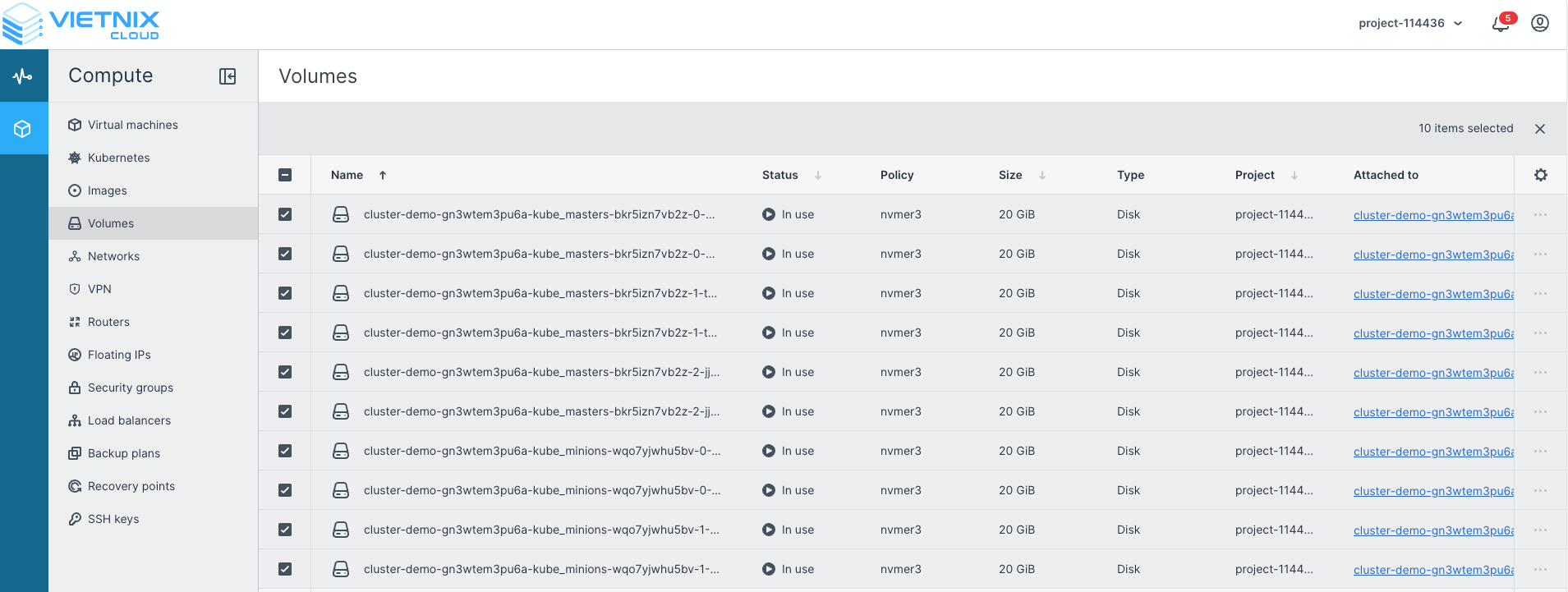

2. Volumes​

  • Displays all volumes, including the System Volume and Container Volume of each node.

    Volumes

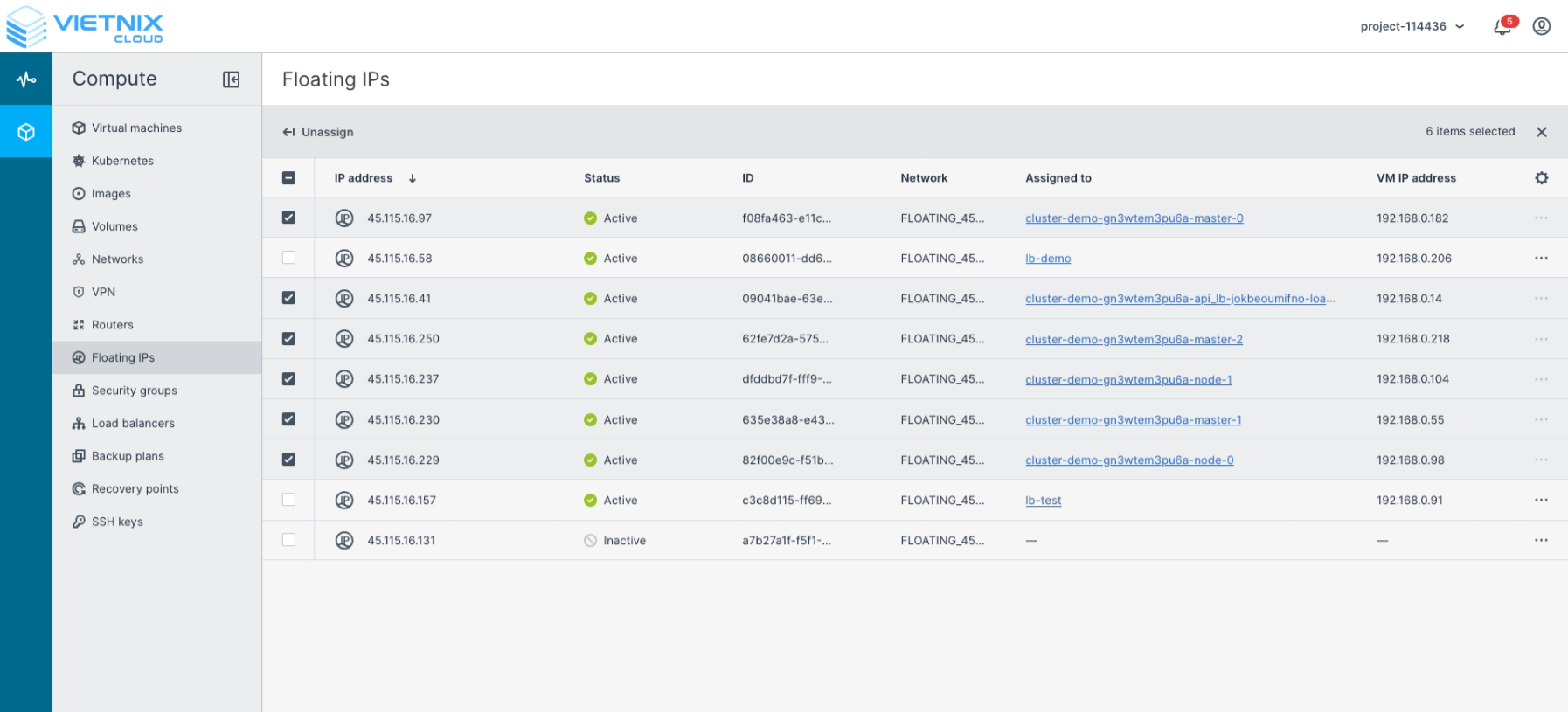

3. Floating IPs​

  • If you selected For Kubernetes API and Nodes during cluster creation, floating IPs will be assigned to the load balancer, masters, and workers.

  • If you selected For Kubernetes API only, floating IPs will be assigned only to the load balancer and masters.

  • These IPs can also be used for SSH access with the core user for debugging, though this is rarely required.

    Floating IPs

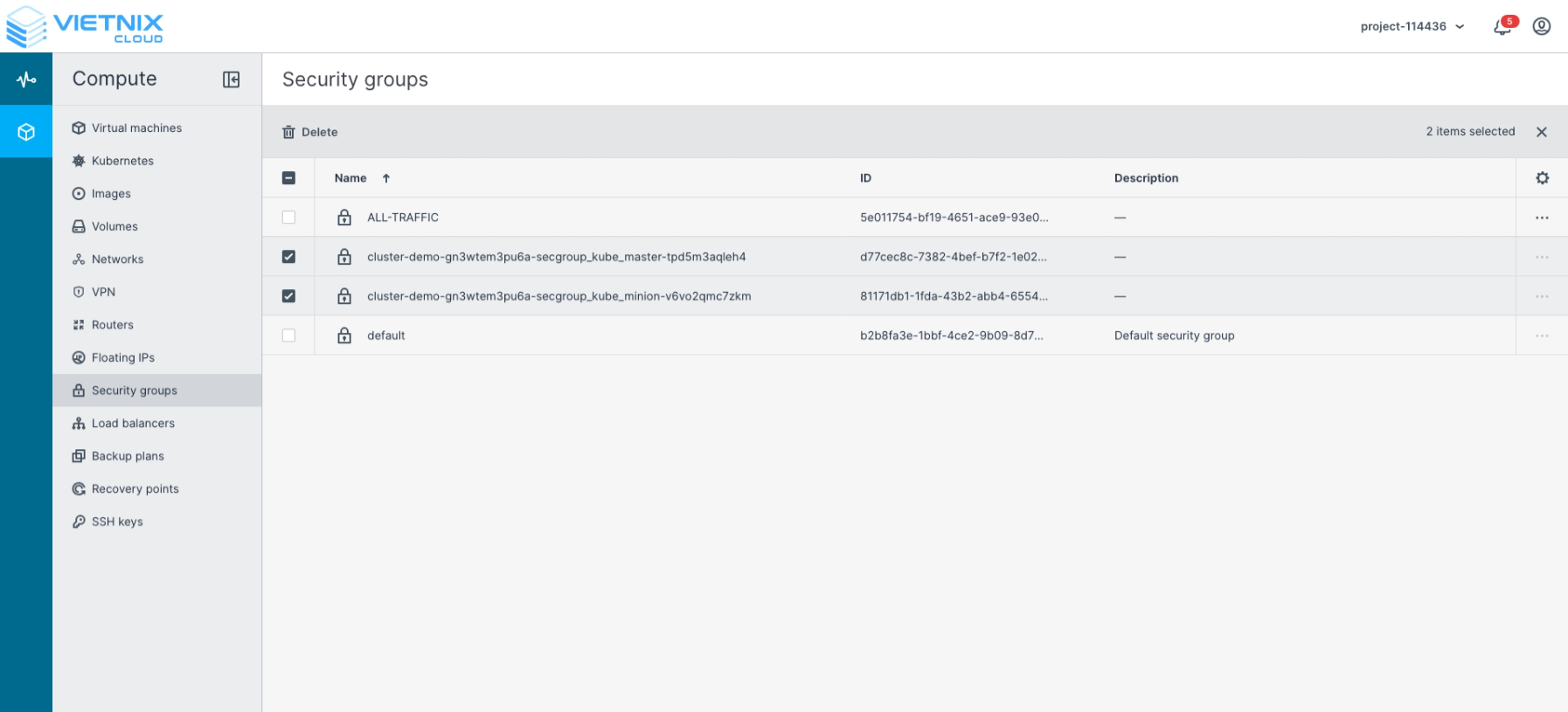

4. Security Groups​

  • Security groups are automatically created for master and worker VMs.

  • Default inbound and outbound rules are preconfigured for secure access.

  • Typically, you do not need to make changes to these rules unless you require custom access policies.

    Security Groups

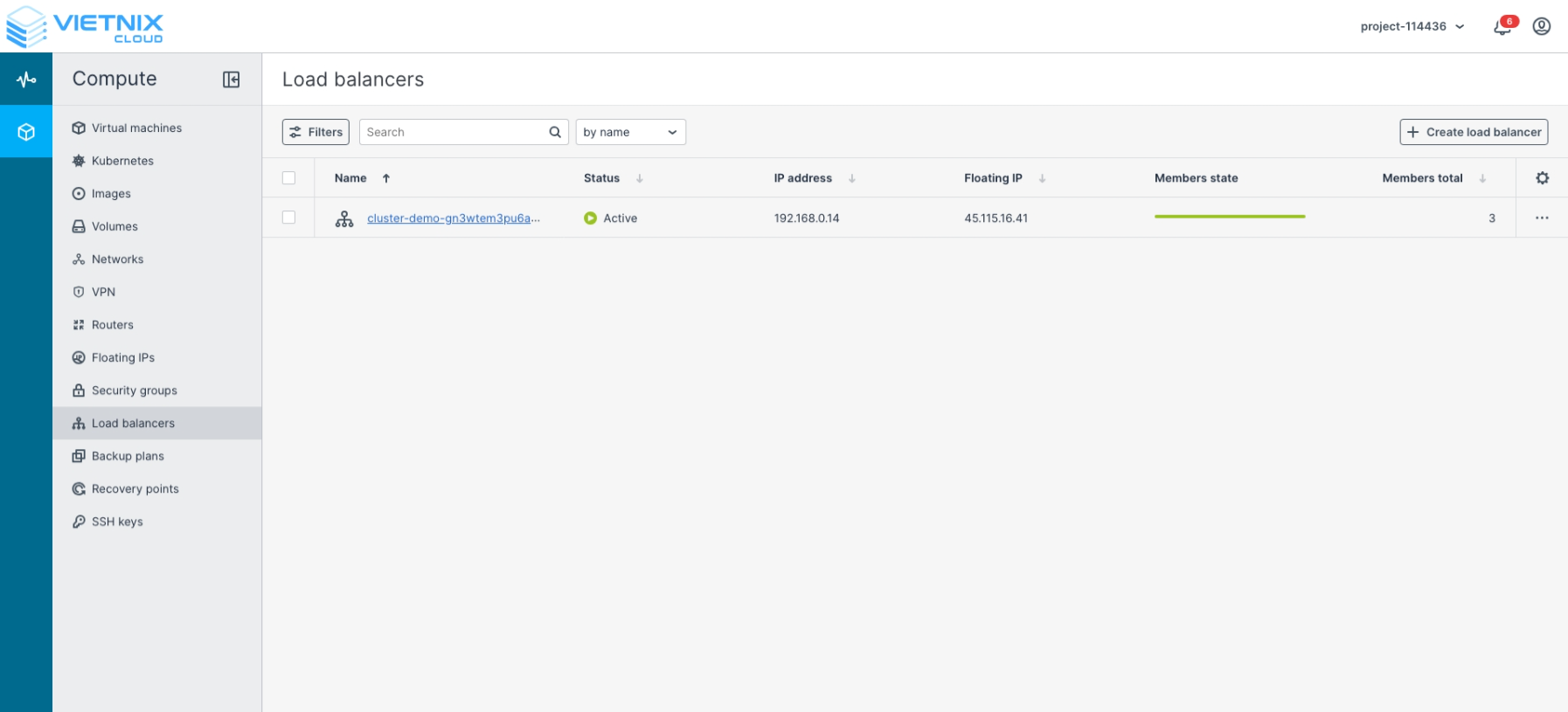

5. Load Balancers​

  • A load balancer is provisioned to distribute traffic across master nodes if High Availability was enabled during setup.

    Load Balancers

Best Practices for Managing Cluster Components​

To ensure stability, security, and operational efficiency, follow these best practices when managing cluster resources:

Virtual Machines​

  • Avoid direct SSH access to nodes; prefer using kubectl or API-based management.
  • Regularly update VM images to patch OS-level vulnerabilities.
  • Use labels and annotations for easier node identification.

Volumes​

  • Monitor volume utilization to avoid pod scheduling failures due to lack of storage.
  • Use persistent volumes (PV/PVC) for workloads requiring reliable data storage.
  • Schedule periodic snapshots or backups of container volumes.

Floating IPs​

  • Minimize public exposure by selecting For Kubernetes API only unless node-level access is required.
  • Restrict access to floating IPs with firewall rules or security groups.
  • Rotate SSH keys regularly if node access is enabled.

Security Groups​

  • Review and audit inbound/outbound rules periodically.
  • Apply the principle of least privilege: only allow necessary ports (e.g., 6443 for Kubernetes API).
  • Use network policies inside Kubernetes for pod-level traffic segmentation.

Load Balancers​

  • Monitor load balancer health checks to ensure master nodes are reachable.
  • Configure DNS records to point to the load balancer IP for API server access.
  • In production, always enable High Availability with multiple masters behind the load balancer.

✅ By following these practices, you can maintain a secure, resilient, and well-structured Kubernetes cluster environment in Vietnix Cloud.
